BiSlide Dovetail Slide Assemblies

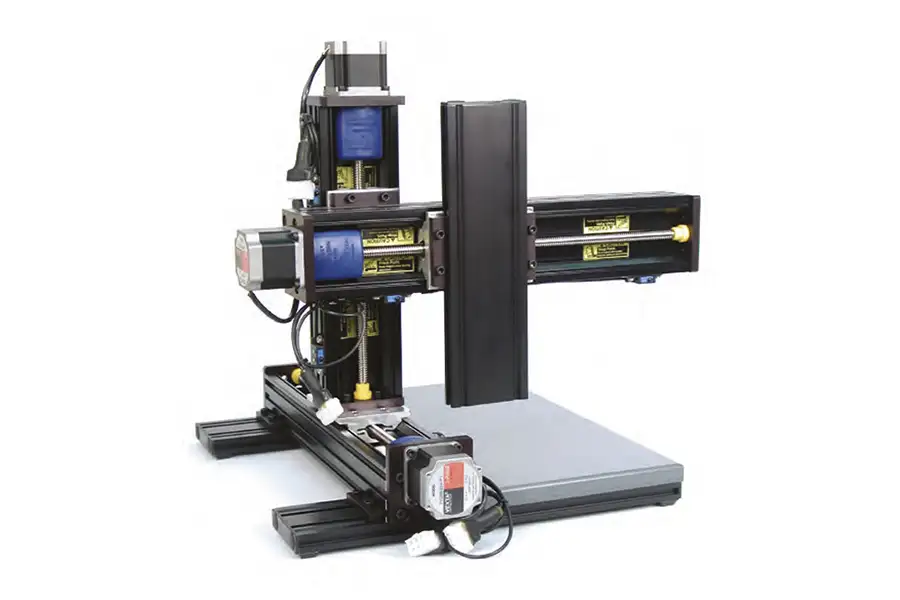

A modular system of positioning stages that allows you to quickly and easily create a complete single or multi-axis system by simply bolting together modular components.

bi-slide linear slide

BiSlide components are standard and interchangeable. If the task changes or ends, you disassemble the components and put them to work elsewhere.

LG Motion UK

If you’re a manufacturer, you’ll find the BiSlide system is easy to upgrade and service to keep up with your rapidly changing marketplace.

If you’re a researcher, you’ll like BiSlide’s ease of configuration and expansion for different projects. Everyone appreciates BiSlide’s durable construction and low cost.

Features

  • Modular design resulting in fewer parts and lower costs
  • Higher strength to weight ratio – uses hard aluminium alloys and a rigid I-beam cross section
  • More compact than most ball screw driven stages
  • Self-holding – unlike ball screws, the 1 or 2mm lead screw will not creep or backdrive
  • Resistant to impact loads
  • Natural wiping action expels debris
  • Gradual wear not sudden failure of rolling element type screws and guide-ways
  • Corrosion resistant to anodised finished
  • Low friction and can operate without lubrication

BiSlide Assemblies

BiSlides assemblies are modular, compact, and durable.

  • Rugged, 45-degree opposing way guides carry high loads in all directions
  • Long life anodised ways as standard
  • Improved lead screw drive for higher thrust capacity
  • Simple modular designs eliminate adaptor plates and brackets
